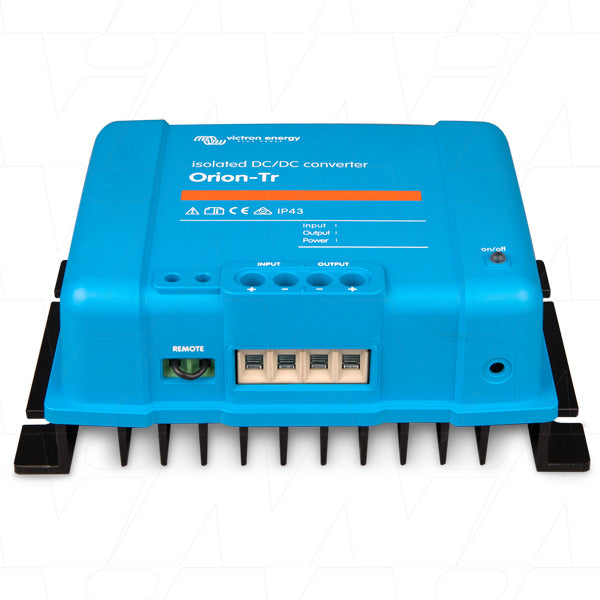

Victron Orion-Tr 48/12V 20A DC to DC Converter with Galvanic Isolation ORI481224110

Save $63.93
Victron EnergySKU: ORION-Tr 48/12-20A (240W)
No reviews

Price:
Sale price$184.52 Regular price$248.45

Description

Victron Orion-Tr 48/12V 20A DC to DC Converter with Galvanic Isolation, 5 Year Warranty.

Remote on-off:

The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).

Adjustable output voltage: can also be used as a battery charger:

For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models are short circuit proof and can be paralleled to increase output current:

An unlimited number of units can be connected in parallel.

IP43 protection:

When installed with the screw terminals oriented downwards.

Screw terminals:

No special tools needed for installation.

Input fuse:

On 12V and 24V input models only.



SKU ORI481224110
Barcode 8719076035282
Brands Victron
Amps 20.0 Amps
DC Input Voltage 32-70V
DC Output Voltage 10-15V +/- 0,2V
Rating (A) 20A
Operating Temperature Range -20 to +55°C (derate 3% per °C above 40°C)
Protection category IP43
Efficiency 87%
Dimensions 70 x 186 x 130
Net Weight (kg) 1.3 Kg
Manufacturers Warranty 5 Year Warranty
