Description

Sieltec AS/NZS3004 Standard Monitoring System

Concerned about unexpected battery shutdowns while docking or navigating tight spaces? The Sieltec VG-1BM Monitoring System helps ensure safe marine operation by providing visual and audible alerts before your VoltGo lithium battery disconnects. Designed to comply with AS/NZS 3004.1:2014 standards, this monitoring solution keeps you informed and in control—giving you time to act before a potential power loss occurs.

Sieltec VG-1BM Monitoring System

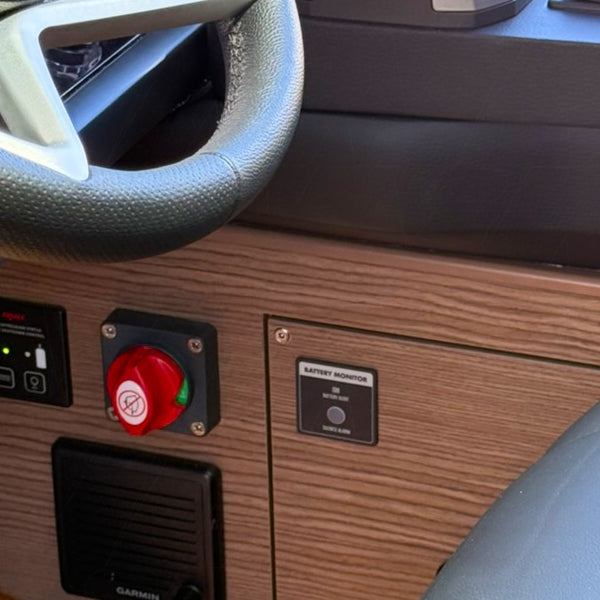

Designed specifically for marine applications using VoltGo lithium batteries, the Sieltec VG-1BM Monitoring System helps meet the monitoring requirements of AS/NZS3004.1:2014 for marinas and low-voltage electrical systems aboard pleasure craft. It detects internal BMS warnings and communicates them clearly to the skipper—providing both an audio alarm and a red LED indicator at the helm. This early warning system is critical during docking or other demanding situations, allowing you to make operational decisions before power loss occurs.

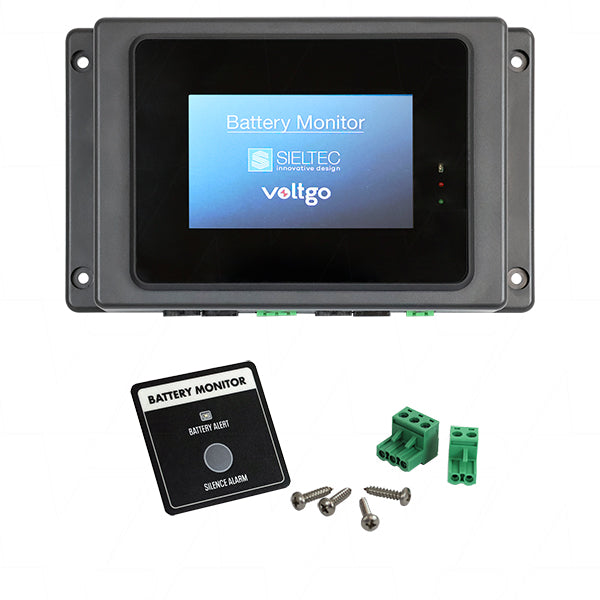

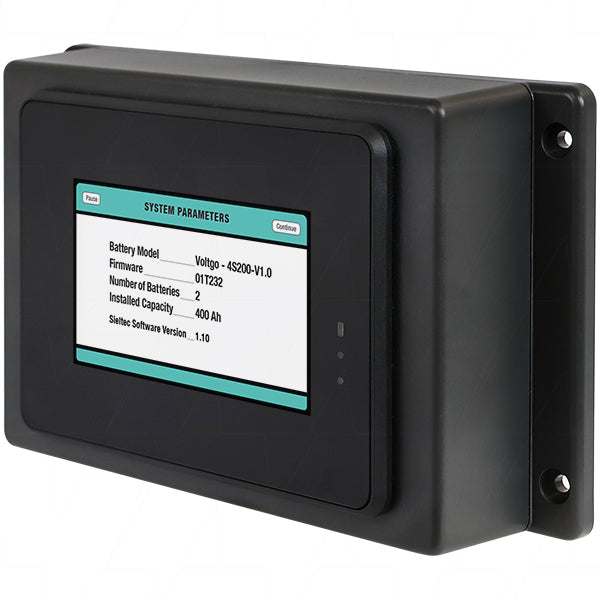

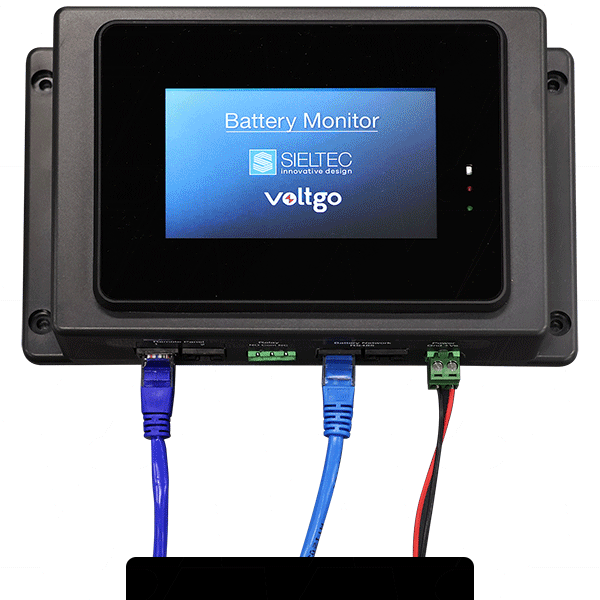

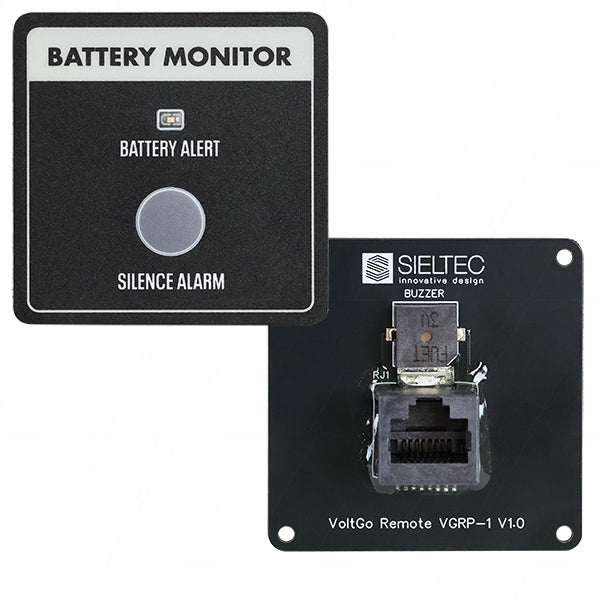

The system includes everything you need: a touchscreen LCD main unit for complete battery bank and individual battery monitoring, an alarm panel with mute functionality, 2 x mating terminal blocks, and screws. The LCD screen also includes connectivity for power, battery terminals, helm panel interface, and optional relay output. Suitable for single or dual helm station configurations, the Sieltec AS/NZS3004 Standard Monitoring System is your essential companion for safe, compliant marine battery operation.

Screen Size 4.3 Inch (93mm x 56mm)
Screen Resolution 800 x 480
Supply Voltage 10.5 - 70 VDC
Supply Protection Continuous reverse polarity protection
Supply Current 90mA @ 24V (Screen Dark: 50mA @ 24V)
Fuse (recommended) 1 Amp
Power Connector 2 PIN 5.08mm pitch, Screw Terminal
Maximum Battery Bank 15 batteries
Battery Type 12 / 24 / 48V batteries

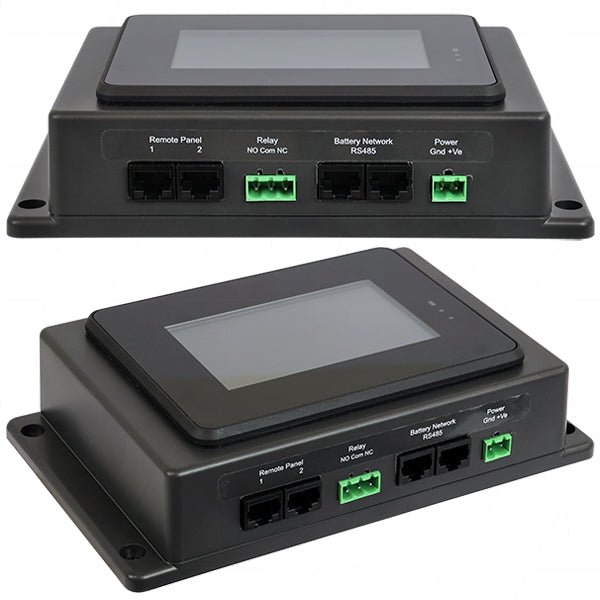

Relay Connector 3 PIN 5.08mm pitch, Screw Terminal
Maximum Relay Current 0.8 Amps, 30V normally open & normally closed contacts
Remote Alarm Connector RJ45 Cat 5 straight through cable
Remote Screen Connector RJ12
Battery Connector RJ45 Cat 5 straight through cable
Battery Serial Connection RS485, Galvanically isolate, 9600
